| ATRA ACE 磁座钻WOJ-3200/AO-5575 手动式 |
|
NITTO KOHKI |

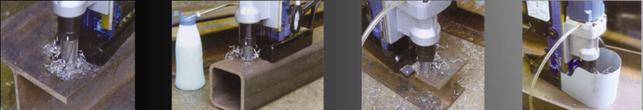

| 用途:钢结构工场、铁路建设、造船工业、桥梁建设、楼房建筑行业的铁板、H钢、角钢等各种钻孔作业。 |
| 特点: |
●超负载自动停止/再启动功能 |
|
●手柄左右两侧均可安装 |
|
|
●防止再启动功能 |
|
|
|
|
|
|
●磁铁断线时防止再启动功能 |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|

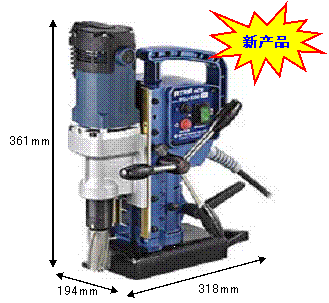

WOJ-3200 |
|
|
|

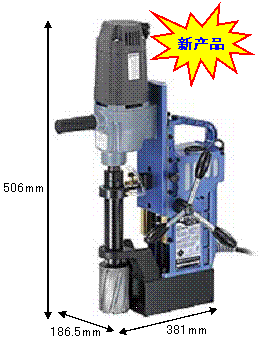

AO-5575 |
|
|
孔径: 17.5～32mm |
|
|
|
最大孔径: 55mm |
|
板厚: 9～50mm |
|
|
|
最大板厚: 75mm |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
| 规格 |
|
|
|
|
|
|
| 型号 |
WOJ-3200 |
AO-5575 |
| 电源 |
220～ 240V AC50/60Hz |
220～ 240V AC50/60Hz |
| 电钻 |
额定消费电量 |
W |
950 |
1150 |
| 额定电流 |
A |
4.3 |
5.4 |
| 无负载转数 MIN-1(rpm) |
870 |
350/650 |
| 磁铁消耗功率 |
W |
70 |
50 |
| 开孔能力 |
孔径 |
板厚 |
孔径 |
板厚 |
硬质合金环状刀具一次式连接型
JETBROACHO One-touch Type |
35L |
17.5～32mm |
9～50mm |
17.5～55mm |
9～75mm |
| 50L |
- |
17.5～50mm |
9～50mm |
高速钢环状刀具一次式连接型
HI-BROACHO One-touch Type |
25L |
- |
14～50mm |
9～50mm |
| 磁铁最大磁力 |
N(kgf) |
9,000(918) |
10,000(1020) |
| 磁铁尺寸 |
|
mm |
99×177 |
86×177 |
| 主体重量 |
|
kg |
13 |
18 |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
